Server Configurations in Private cloud platforms
This article helps you to find right server configuration in private cloud platforms.
Gathr Production System Specifications
To allow user select a particular configuration in a private cloud. The hardware requirement is as follows:-
Base Platform: 250 users/node, 5% concurrency
| Cores |
|---|
| RAM |
| HDD |
| 8 cores hyper-threaded (16 threads) |
| 64GB |
| Enterprise grade SSD for Gathr installation – Total 1TB in Raid 5 configuration |
Base Platform with AI/ML/Python support - 250 users/node, 5% concurrency
| Cores |
|---|
| RAM |
| HDD |
| 16 cores hyper-threaded (32 threads) |
| 128GB |
| Enterprise grade SSD for Gathr installation – Total 1.6TB in Raid 5 configuration |
AWS
| Instance type |
|---|
| RAM |
| CPU |
| Disk |
| OS |
| m5.4xlarge64 GiB16 vCPUs |
| EBS (GP2) 1 TB SSD |
| 1. Linux OEL 7.6 |
| 2. RHEL 7.9 |
| 3. Windows |
| m5.8xlarge128.0 GiB32 vCPUs |
| EBS (GP2) 1.6 TB SSD |
You can choose m4 instances. Linux OEL and RHEL are available in AWS Marketplace
Documentation: Refer
How to launch server in AWS private cloud →
GCP
| Instance type |
|---|
| RAM |
| CPU |
| Disk |
| OS |
| n2-standard- 16 |
| 64.0 GiB16 vCPUs |
| SSD Persistent disk 1 TB |
| 1. RHEL 7.9 |
| (For SAP with HA) |
| 2. Windows |
| n2-standard-32 |
| 128.0 GiB |
| 32 vCPUs |
| SSD Persistent disk 1.6 TB |
Documentation: Refer
Given N2 series, all workloads that can take advantage of the higher clock frequency are a good choice for this series. These workloads can get higher per-thread performance while benefiting from all the flexibility that the general-purpose machine family offers.
Please note, OEL 7.6 is not available Google marketplace.
Azure
| Instance type |
|---|
| RAM |
| CPU |
| Disk |
| OS |
| D16s_v5 |
| 64.0 GiB16 vCPUs |
| Premium SSD 1 TB |
| 1. Linux OEL 7.6 |
| 2. RHEL 7.93. Windows |
| D32s_v5 |
| 128.0 GiB32 vCPUs |
| Premium SSD 1.6 TB |
RHEL 7.9 is available in Microsoft Azure marketplace.
| D |
|---|
| 16 |
| S |
| v5 |
| Standard general-purpose compute |
| 16 vCPU |
| Supports premium SSD disk (production and performance workload) |
| Generation (latest generation 5) |
Oracle cloud
| Instance type |
|---|
| RAM |
| CPU |
| Disk |
| OS |
| VM standard.e4.flex |
| 64.0 GiB8 OCPUs |
| SSD 1 TB |
| 1. Windows |
| VM standard.e4.flex |
| 128.0 GiB16 OCPUs |
| SSD 1.6 TB |
Please note: OEL supports 8, 7.9, 6.10. Red hat is not supported in Oracle cloud. So, only option we have is Windows based deployment.
Documentation for OS support, and refer supported platform image for E4.

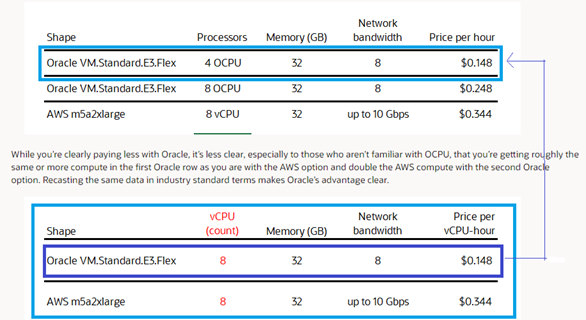

1 OCPU = 2 vCPUs attached snippet for reference.
